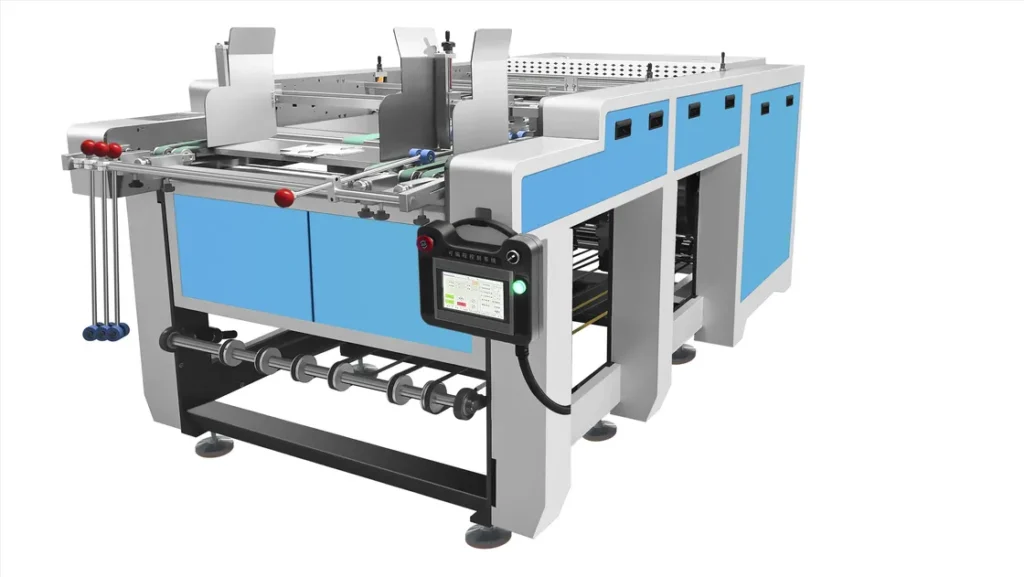

10-40m/Min Automatic V Grooving Machine Rigid Box Die Cutting Machine For Cardboard
Model Number: DG-960GS
Certification: CE
Packaging Details: WOODEN BOX 3250*1550*1500MM
Highlight: 40m/Min Automatic V Grooving Machine, 10m/Min Automatic V Grooving Machine, Box Die Cutting Machine For Cardboard
10-40m/Min Automatic V Grooving Machine Rigid Box Die Cutting Machine For Cardboard
Product Overview
This programming die cutting and grooving machine is widely used for die cutting and V-type grooving on various hardcovers and rigid boxes. It is suitable for processing grey board and wooden board (MDF).
Key Features
- Automatic correcting structure for easy material changes with no adjustment needed on material conveyance
- Innovative V-slotting design prevents damage from waggling
- Automatic waste and product collection system for easy separation
- High-precision bearings ensure quiet operation with no roller partiality
- Production speed of 10-40m/min for efficient processing
Technical Specifications
| Model | DG-960GS | DG-1100GS |
|---|---|---|
| Cardboard Size (L x W x T) | 150-600mm x 150-960mm x 0.5-4mm | 150-600mm x 150-1100mm x 0.5-4mm |
| Production Speed | 10-40m/min | 10-40m/min |
| Creasing Size | 20mm-350mm | 20mm-350mm |
| Voltage/Power | AC 380V/50Hz/6.5kw | AC 380V/50Hz/7.5kw |
| Grooving Angle | 80-140° | 80-140° |
| Number of Cutter Holders | 8 sets | 10 sets |
| Machine Dimension (L x W x H) | 3150mm x 1450mm x 1450mm | 3150mm x 1750mm x 1450mm |
| Machine Weight | 1700Kg | 2100Kg |
