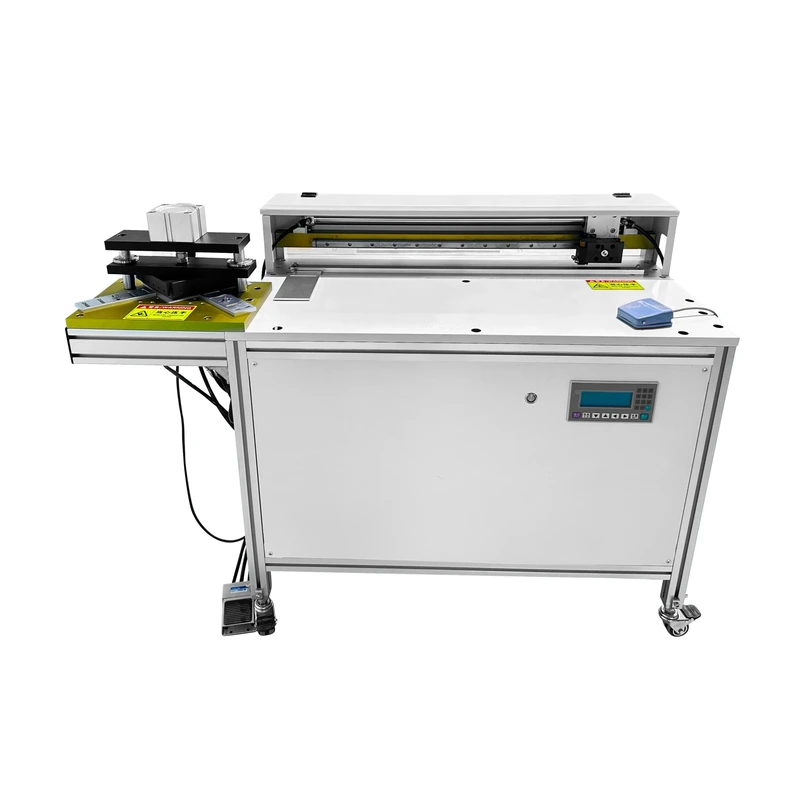

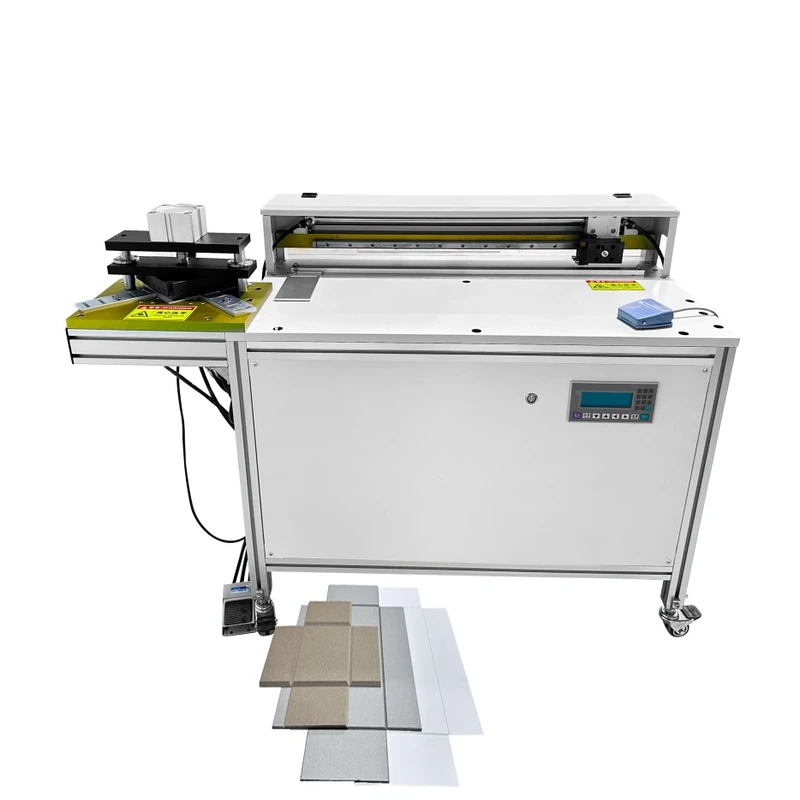

Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making
Detail Information
Voltage: 220V
Dimension: 1200*550*950mm
Weight: 125KG
Grooving Width: 0-700MM
Grooving Height: 0-380MM
Grooving Angle: 85-135°
Grooving Thickness: 250GRAMS-5MM
Air Pressure: 0.6-0.8MPA
Power: 5W
Machine Dimension: 142*85*120CM
Automatic Grade: Semi-Automatic
Core Components: Engine, Gearbox, Bearing, Motor, Pump, Gear
Model: 7010VP Pneumatic V Grooving Machine
Usage: Paper Forming Machine
Machine Weight: 125KG
Highlight: 220V V Grooving Machine, 125KG Die Cutting Machine, Programmable Pneumatic V Grooving Machine
Product Description

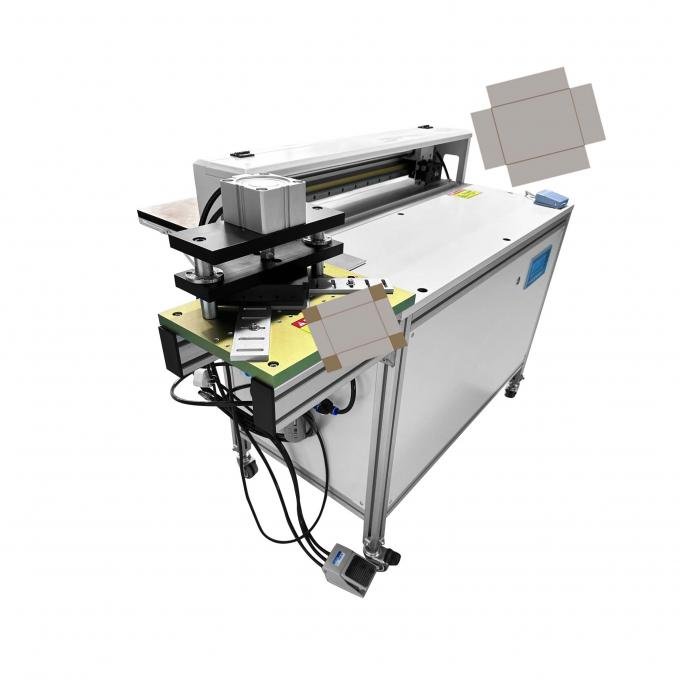

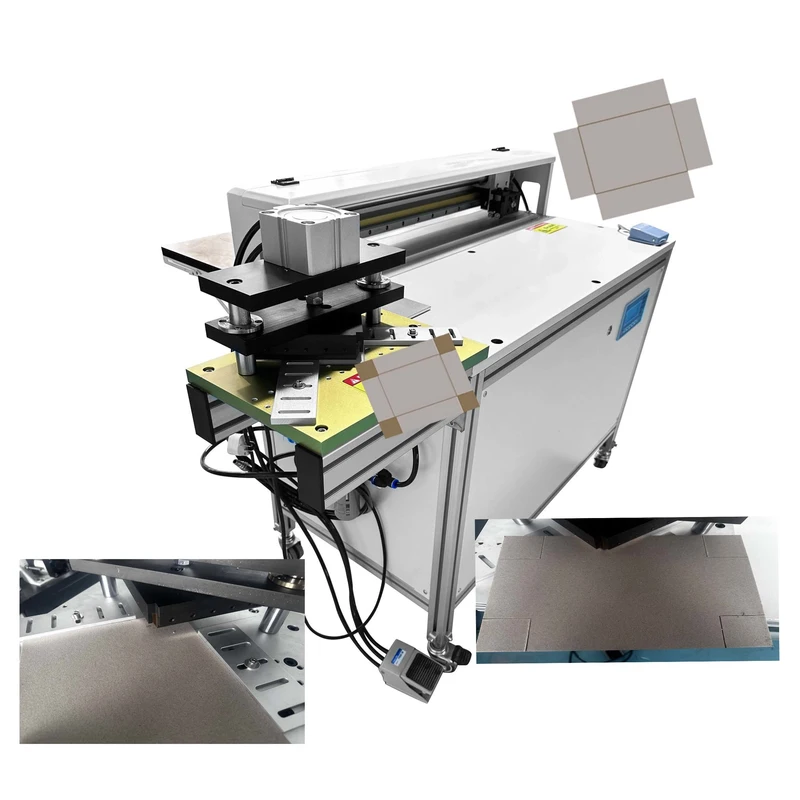

Semi-auto Pneumatic V Grooving Machine Die Cutting with Grayboard Slotting Machine for Sample Box Production

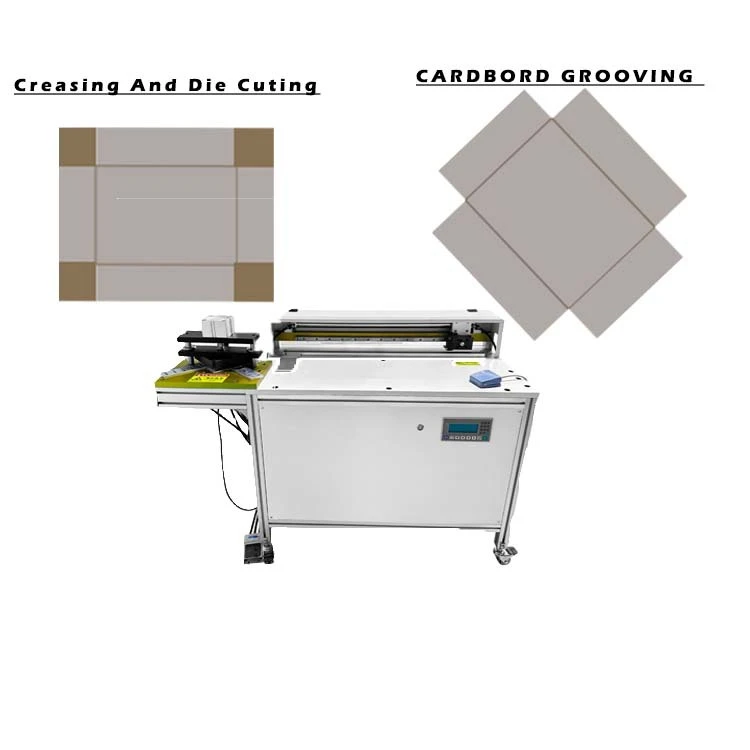

Pneumatic V Grooving Machine
The Pneumatic V grooving machine is widely used for sample making of hardcover and rigid boxes. It features integrated die-cutting and grooving capabilities, enabling efficient sample production in a single operation. With programmable controls, the machine allows adjustment of motion timing to accommodate different sizes, optimizing workflow efficiency. Suitable for both sample production and small batch runs, this machine offers an economical solution for businesses with limited budgets.
Box Production Process

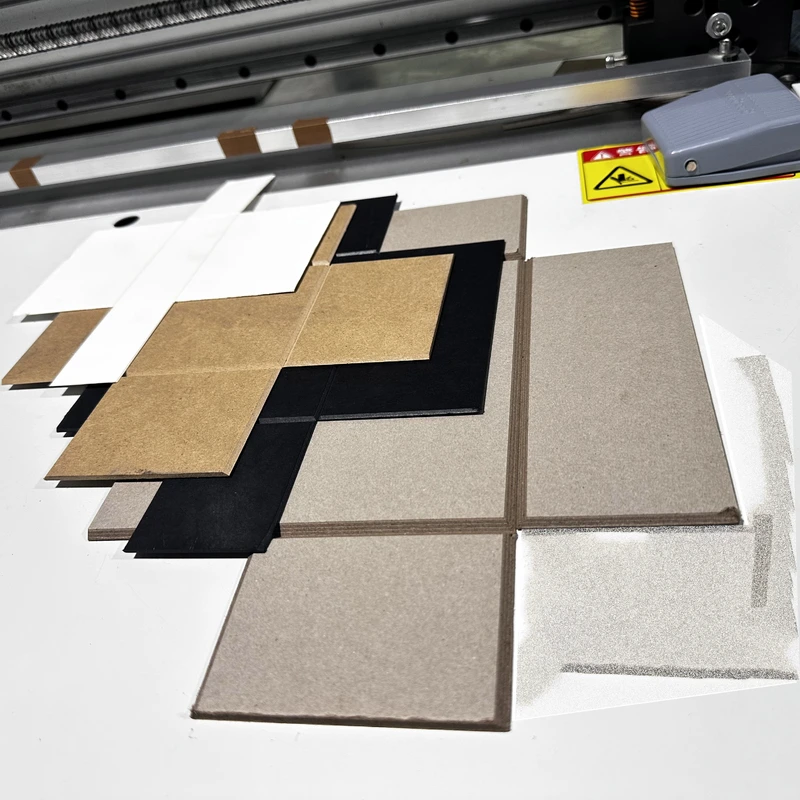

The standard process involves first die-cutting the cardboard, followed by precision slotting to create the box structure.
Technical Specifications
| Model | 7010VP Pneumatic V Grooving Machine |
|---|---|
| Grooving Width | 0-700mm |
| Grooving Height | 0-380mm |
| Grooving Angle | 85-135° |
| Grooving Thickness | 250grams-5mm |
| Air Pressure | 0.6-0.8MPa |
| Voltage | 220V/5W |
| Machine Dimensions | 142×85×120cm |
| Machine Weight | 125kg |
Quality Assurance

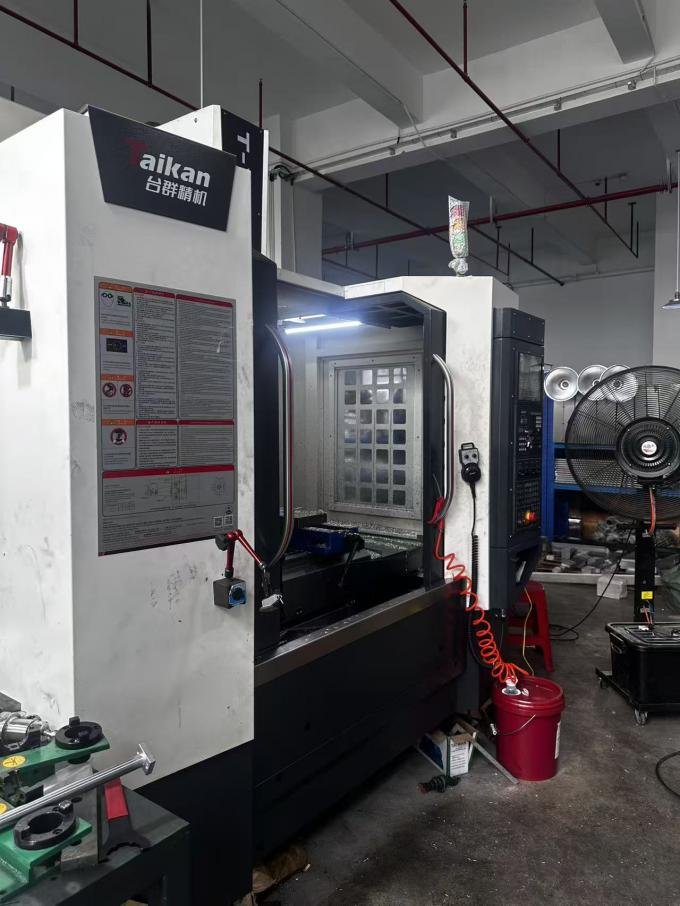

Each machine undergoes rigorous testing and sample production before dispatch to ensure optimal performance. Our monthly production planning ensures prompt order fulfillment, with same-day dispatch available for urgent orders.
Customization Services

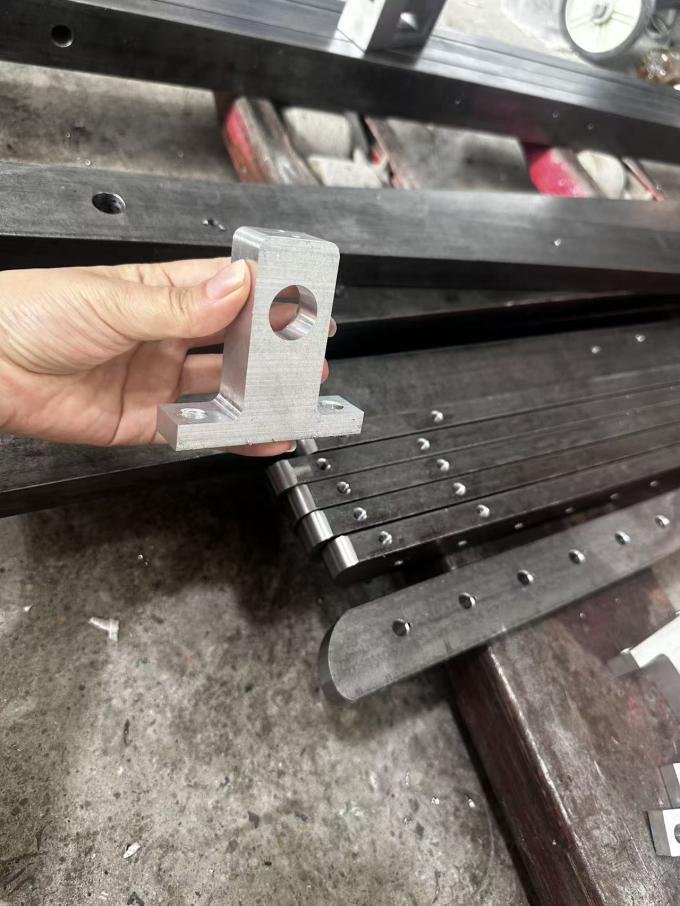

With in-house design and manufacturing capabilities, we can accommodate custom requirements. Our team provides same-day design concepts and rapid prototyping to meet specific customer needs.
